12' Farnham Roll

Contact us for price

New Fairfield, CT

orCall 203-746-6409

Description

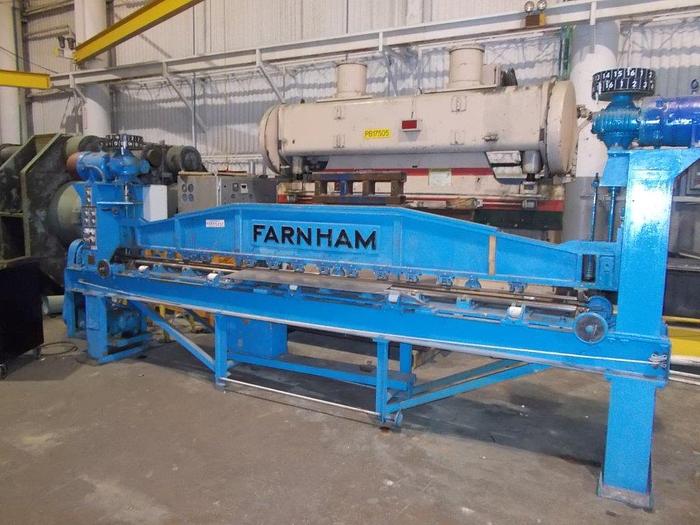

One Used 12’ FARNHAM FORMING ROLL
SPECIFICATIONS:
MAX. WIDTH: 12'
THICKNESS: .060"
RADIUS: 5/8" MIN.
DIAMETER OF TOP ROLL .90"
DIAMETER OF (2) BOTTOM ROLLS 1-3/4"

EQUIPPED WITH:
VARIABLE SPEED DOWN FEED
CONTROLS - BOTH SCREWS, UP/DOWN BUTTONS NEAR SCREW, UP/DOWN BUTTONS
FAR SCREW, UP/DOWN BUTTONS FORWARD/REVERSE HANDLE CONTROL

MOTOR DATA: (2) 1 HP 3/220/60- 3240-810 RPM W/ GEAR REDUCER.
(1) 1-1/2HP,3/220/60-1725-860 RPM W/ GEAR REDUCER.
OVERALL DIMENSIONS: 2' W X 16'5"L X 7'4"H
CONDITION: REBUILT in 2012
PHOTO & MANUAL AVAILABLE

Catalog Specification to be verified upon inspection

Specifications

ConditionUsed
