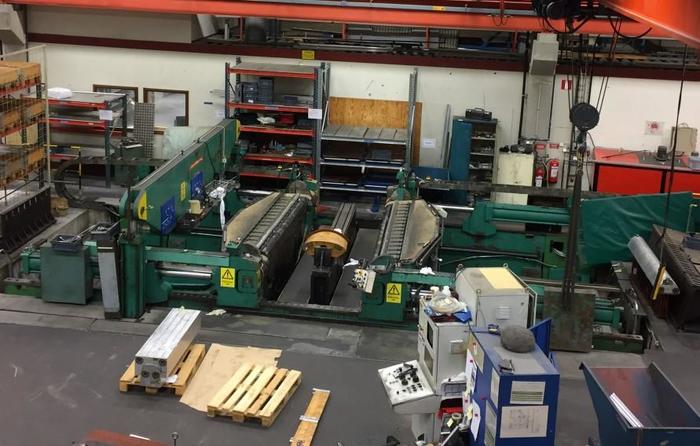

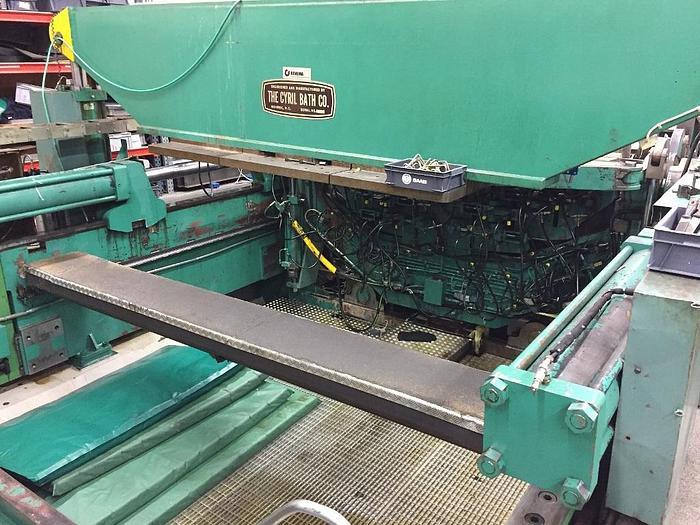

400 Ton Cyril Bath VTL400CJ Sheet Stretch Forming Press

Contact us for price

New Fairfield, CT

orCall 203-746-6409

Description

MACHINE SPECIFICATIONS

DIE TABLE
Maximum Thrust 400 tons @ 2700 psi
Size 12” width x 255” length
(305mm x 3050mm)
Stroke 36” (915mm)
Tilt Guide Post – 10” stroke
(250mm)
Rotates 90 degrees

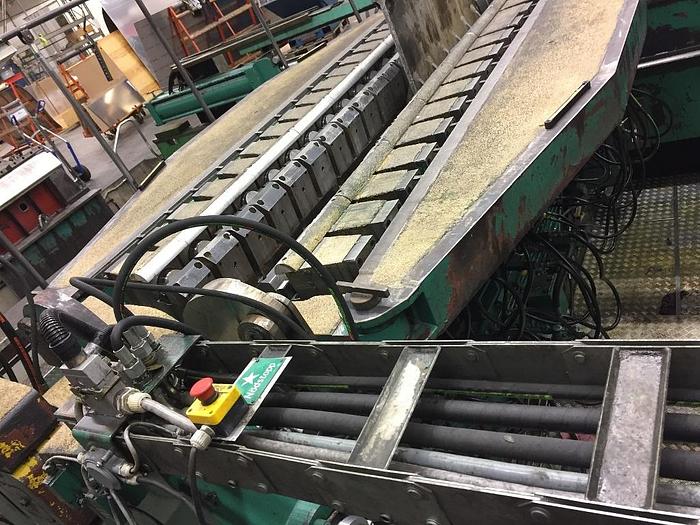

JAWS
Type Direct Acting
7 Segment Power Curvable
Maximum Pressure 3000 psi
Jaw Swing Horizontal through 105
degrees, powered and float
Maximum Distance
Between Jaws 120” (3050mm) Jaws Vertical

Minimum Distance
Between Jaws 3” (76mm) Jaws Horizontal
Jaw Opening 1½ inches (38mm)
Horizontal Angulation + / - 10 degrees

CARRIAGES
Number of Cylinders Two per Jaw
Stroke 60” (1524mm)
Capacity (Horizontal) 150 tons per Jaw @ 2500 psi

BULLDOZER
Type Gantry
Clamp Force 15 – 150 tons
Cylinders 2 each – pull
Stroke 36” (915mm)

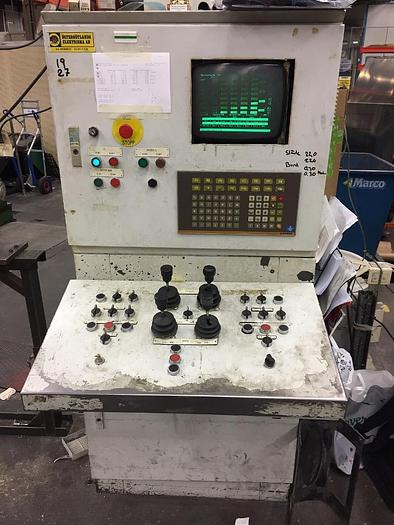

CONTROLS Siemens CNC

Specifications

ConditionUsed
