WSF/Amercican Autoclave 5'6" dia x 19' 6" long

Contact us for price

New Fairfield, CT

orCall 203-746-6409

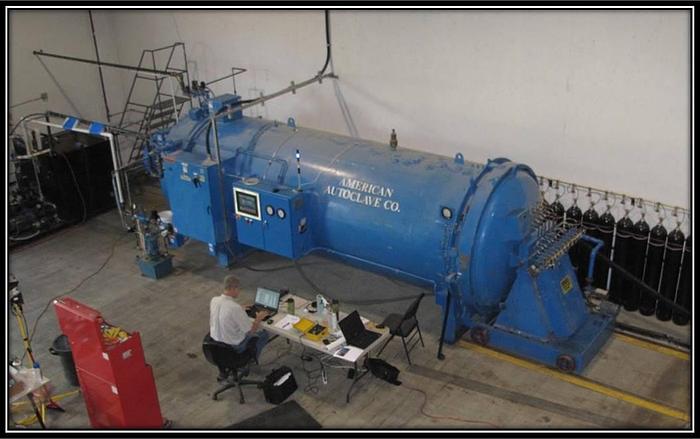

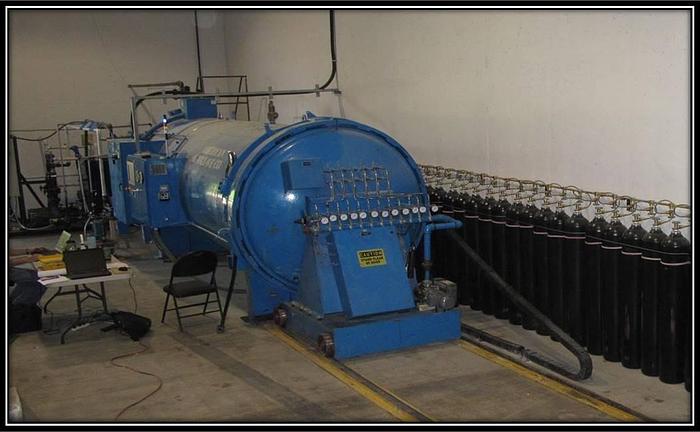

Autoclave is a 5.5 ft x 19.5 ft (work zone) pressure vessel electrically heated. Has been run with nitrogen fill and has an internal radiator and fan for process cooling.

2.0 Specifications and Systems:

WSF Vessel 5.5 ft x 19.5 ft Work Zone
125 psi Max Working Pressure
400 oF Max Working Temp
Pressure Vessel ID: 67.5 in & OD 74 in
Length of the Shell: 263.5 in (from rear dome to flange door seals
50 hp 3 phase high efficiency motor
12 Vacuum Source Ports
12 Vacuum Monitor Ports
Programmable Networked Touch Screen Controller for complex ramp/soak/pressure cures and backup Controller system
