Verson Wheelon Fluid Cell Press 36 x 120

Contact us for price

New Fairfield, CT

orCall 203-746-6409

Description

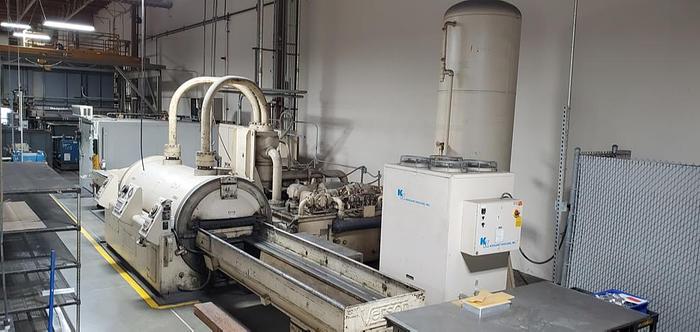

Used Verson Wheelon Direct Acting Hydraulic Forming Press
Model: 10800R-36-120 s.n. 21219

Catalog Specifications
SPECIFICATIONS
Flex-Die Rubber Pad
Fluid Forming
Capacity Tonnage – 10,800
Pressure Forming – rated maximum 5,000 psi

Trays – Two
Tray Size at Top (both) W x L: 36” x 116”
Right Tray Size at Bottom at 4 1/2” Depth: 30 ¼” x 110 ¾”
Left Tray Size at Bottom at 6” Depth: 26” x 104”

Controls
Control Station Located in Front
In/Out Buttons located on Each Tray

• Automatic Tray Controls & Interlocks
• Semi-Automatic Pad Roll Up Devices On Both Tables
• Fast Acting Duplex Loading Trays
• Rubber Pad Lubrication System
• 75 H.P. Main Motor, plus 30 HP Auxiliary Motor

Controls: Central Master Control Station for all press functions.
(2) Operator Control Stations for selecting forming pressure, tray in/out, evacuation and emergency stop, located at each end of Press Barrel
Selectable “Manual” or “Automatic” press cycle modes of operation

Under power

var img = document.createElement("img");
var dref=document.referrer;
dref = escape(dref);
img.src = "https://vigl.us/1410/st?s=D6E5X0ZC-23C2-1X88-529Y-5Z293485DC3D&r=" + dref;


Visit Intel B2B Tracking Image - NoScript

Specifications

ManufacturerVerson
Modelwheelon
Year1969
ConditionUsed
