ABB Quintus fluid cell press

Contact us for price

New Fairfield, CT

orCall 203-746-6409

Description

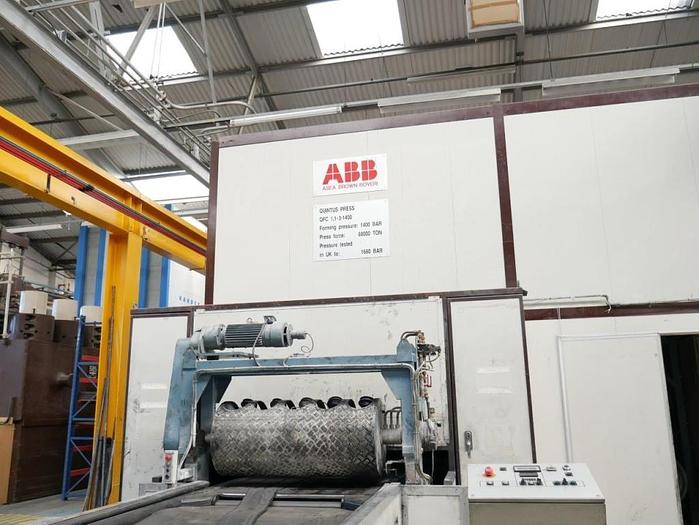

Used ABB Quintus Fluid Cell Press
Model QFC 1.1 x 3.0 – 1400 / 68000 ton press force
1400 bar / 20,000 psi forming pressure

Operating Pressure Programmable up to 20,000 psi

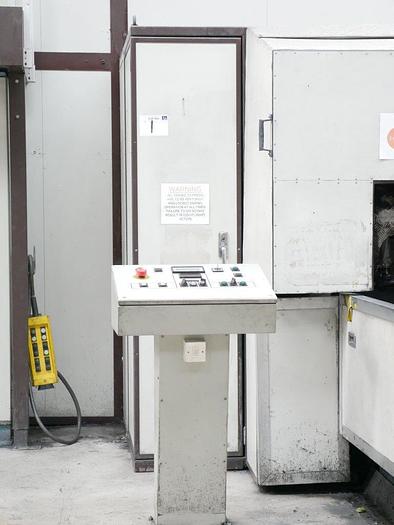

Press Tables Two (2) with independent operator control stations
Press Table Dimensions 1.1 m x 3.0 m (43.3” x 118.1”) useable
Press Table Depth (maximum) 254 mm (10.4”)
Press Cycle Time 135 seconds to full pressure - shorter cycle times with tray filler plate (included) installed to reduce depth of tray
Press Frames Pre-stressed, wire-wound forged main cylinder and end frame
Fluid Cell Design Cassette type w. repairable natural rubber fluid cell
Fluid Cell Change System Semi-automatic – change over in one shift

Features and comments
Press details including weights, measures and foundation requirement available upon request
Press wear pad automatic pick-up & roll-up system included
Safety interlocks with full sound enclosure
Full compliment of spare parts

Specifications

ConditionUsed
