ABB fluid Cell Press 29000 psi

Contact us for price

New Fairfield, CT

orCall 203-746-6409

Description

Used ABB Quintus Fluid Cell Press
Model QFC 0.9 x 2.0 - 2000 / 62000 ton press force
35.4” x 78.7” Table, 2000 bar / 29,000 psi forming pressure

Operating Pressure Programmable up to 29,000 psi
Press Tables One (1) with independent operator control station

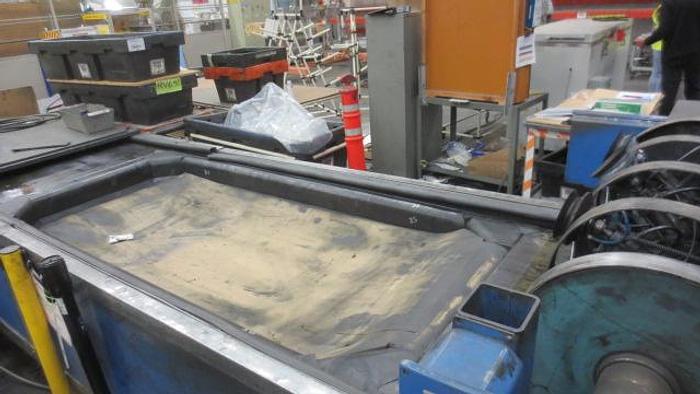

Press Table Dimensions 0.9 m x 2.0 m (35.4” x 78.7”) useable
Press Table Depth (maximum) 150 mm (6.0”)
Press Cycle Time 2 min 35 seconds to full pressure - shorter cycle times to lower pressure or with tray filler plate installed to reduce depth of tray
Press Frames Pre-stressed, wire-wound forged main cylinder and end frame
Fluid Cell Design Cassette type, fast change w. repairable natural rubber fluid cell
Fluid Cell Change System Semi-automatic – change over in one shift

Features and comments
Press wear pad automatic pick-up & roll-up system
Safety interlocks with full sound enclosure
Full compliment of spare parts including spare diaphragms

Specifications

ConditionUsed
