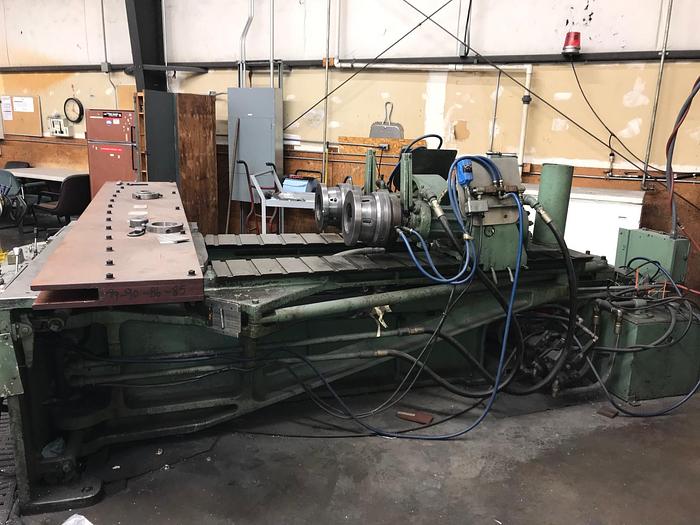

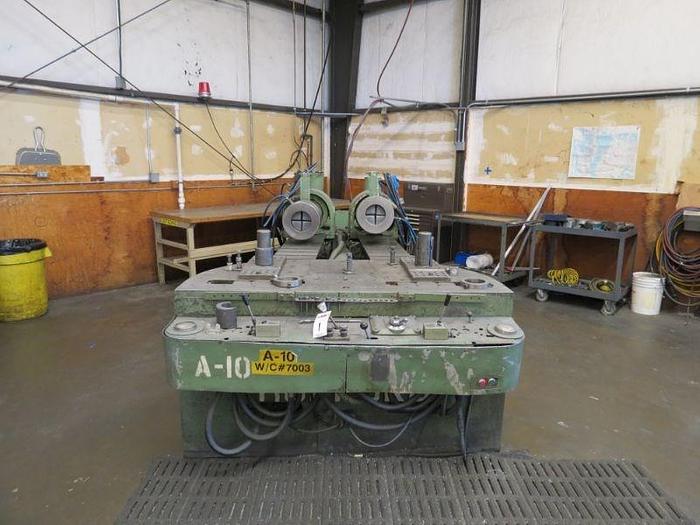

Hufford A-10 Stretch forming machine:

Hufford A-10 Stretch forming machine:

Contact us for price

New Fairfield, CT

orCall 203-746-6409

Description

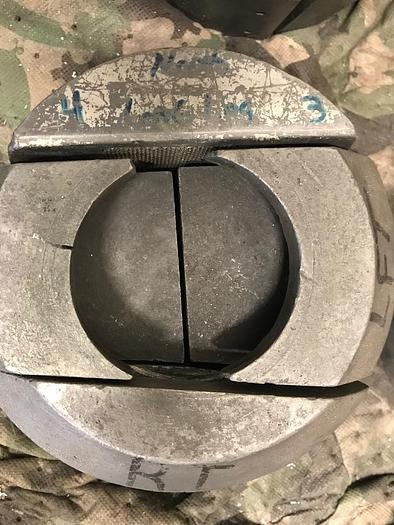

One (1) Hufford Model A-10 Stretch Wrap Forming Machine Catalog Specifications: Capacity 17.5 Tons Table Dimensions 30” x 65” Table Height 35.5” Maximum Part Length Formed 219” Standard Arm Minimum Part Length Formed 10” Maximum Die Height 20” Maximum Die Length @ 180 Deg. 68” Minimum Die Length @ 180 Deg. 20” Tension Cylinder Stroke 18.5” Operating Pressure Maximum 2,000 PSI Overall Floor Space Required 23’ 6” x 14’11” F-B Overall Height 4’ 7” Approximate Weight 13,000 lbs. Equipped With: 1 pair of extrusion jaws (Hufford Model AD-5 - 4” diameter).

Specifications

ConditionUsed
