1990 Farnham 1015 10' Aircraft Forming roll

1990 Farnham 1015 10' Aircraft Forming roll
Contact us for price
Seattle, WA
Description
One Used 10' GEMCOR FARNHAM AIRCRAFT FORMING ROLL
Model 1010-EXX
Serial Number NF14082
Year of MFG 1990
SPECIFICATIONS
CAPACITY:
Overall Length of Rolls ..................10 feet
Thickness ..................................... 1/8" - 0.125"
Minimum Radius .......................... 1"
Tensile Strength..............................60,000 PSI
ROLL DIAMETER:
Top Roll ......................................... 2"
Bottom Roll ................................... 2"
TOP ROLL LIFT MOTORS
Geared motor to screw located on each end.
With Manual Override Adjustment
BOTTOM ROLLS:
In/Out Adjustment with Indicators
MOTOR DRIVES: Wired 460 volts, 3 phase, 60 Htz
All Rolls driven by 2-Speed Motor ........... 1 & 2 HP 460v
Input 1725, Output 4.5
Top Roll Elevation Motors (Two) ............. 3 & 3/4 HP 220/460v
OPERATOR CONTROLS:

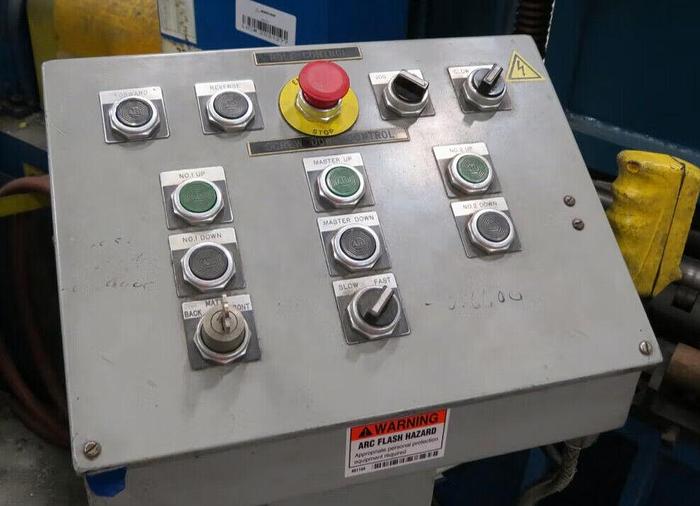

Portable control pedestal

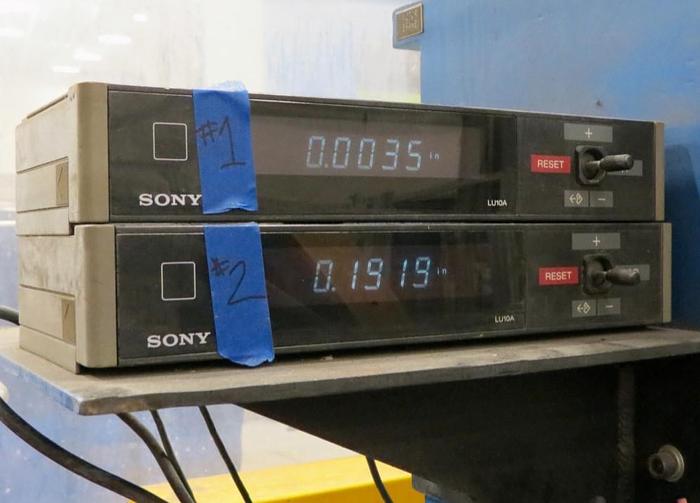

(2x) Sony LU10A DRO
Dual lift motors w/gear reducers
Foot control (front/back)
Remote Hand Control on pedestal
Work lighting
Control cabinet
Safety guards
Specifications
Manufacturer | Farnham |
Model | 1015 10' Aircraft Forming roll |
Year | 1990 |
Condition | Used |
