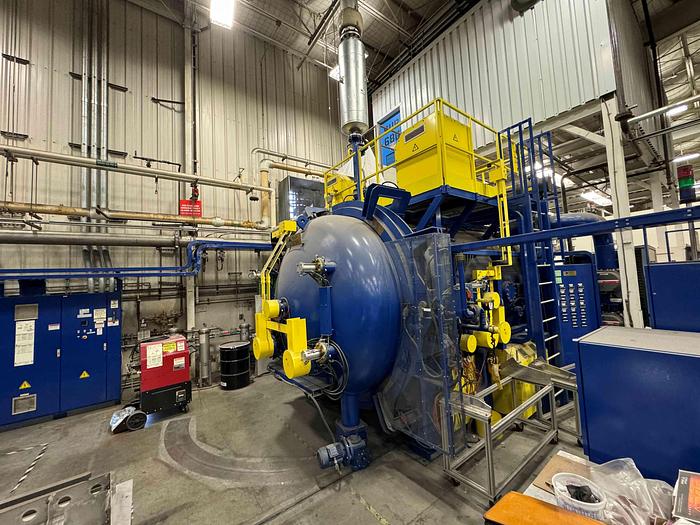

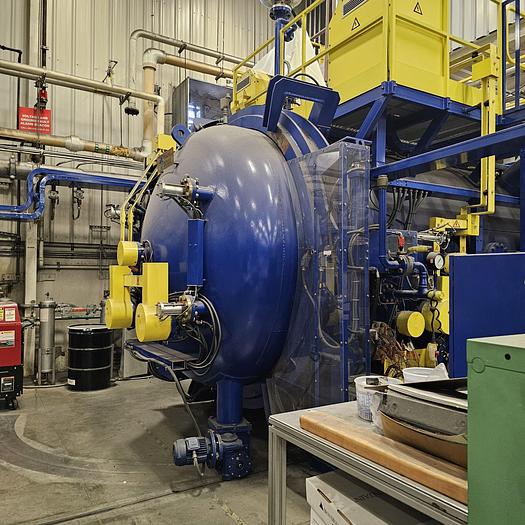

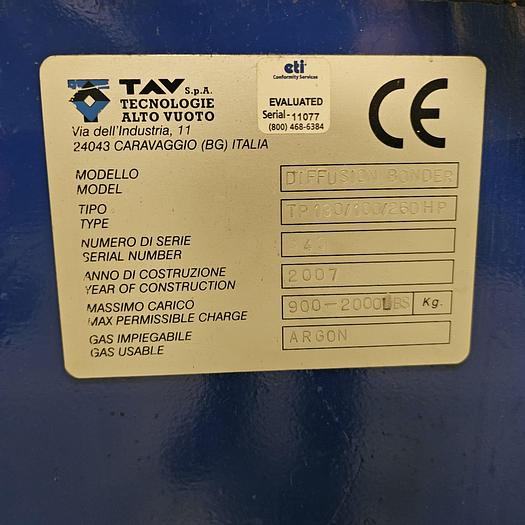

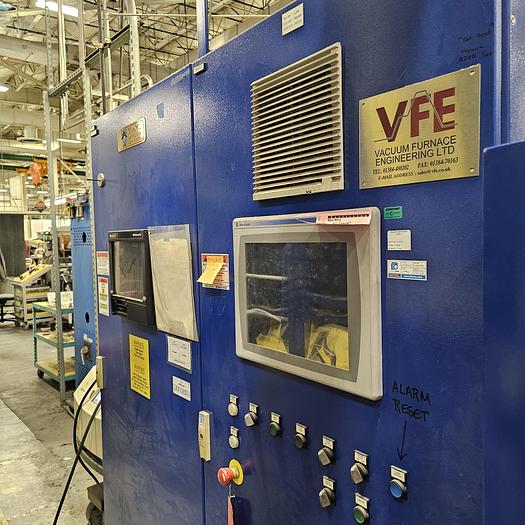

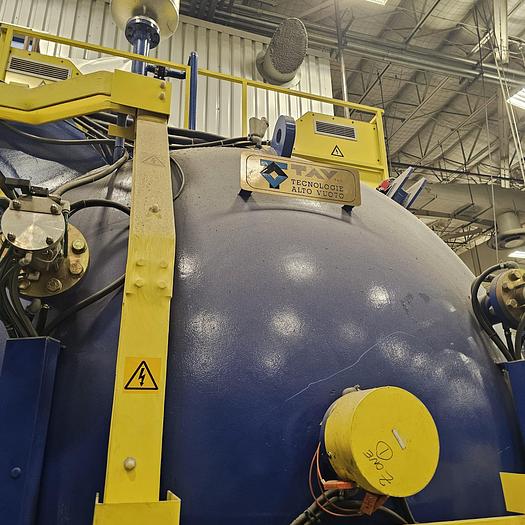

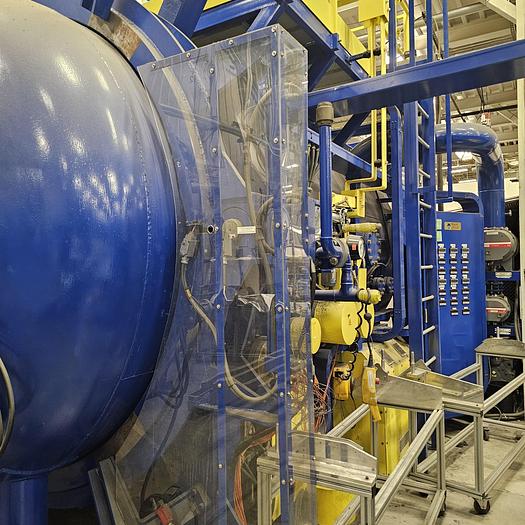

TAV Diffusion Bonding Vacuum Furnace 48" x 42" x 96" Work Zone

TAV 2400 deg Diffusion Bonding Vacuum Furnace

48" x 42": x 96" Work Zone

2006, 2400 deg F max

a.   Dimensions

Work Zone

Width     52”

Height     40”

Depth     102”

Floorspace Requirements (see attached layout for more detail)

Width     23’

Height     18’

Depth     30’

b.   Charge

Max. Gross Charge     2,000 lbs.

c.   Temperature

Max. Temperature     2400 °F

Temperature Uniformity in Vacuum (>1,200 °F)    ± 25 °F

   (recently surveyed by Furnacare technician with a fixture sized 52”x38”96”)

d.   Vacuum & Partial Pressure

Ultimate Vacuum Level (clean, dry, empty furnace)     10-3 torr (range)

Operating Vacuum     10-2 torr (range)

Partial pressure (N2 or Ar)    0.1 – 10 torr

Leak Rate (clean, dry, empty furnace)     10-3 torr l s-1

e.   Gas

Cooling Gas     N2 or Ar

Max. Quench Pressure    75 psi

Max. Operating Pressure    <400 psi

Quench Fan Power     110 kW

Gas Consumption per Cycle (@ 75psi)     approx. 3,800 ft3

Gas Purity     99.999 %

f.   Power

 Heating Power     700 kW

Pumping Group     approx. 38 kW

Connected Load     800 kVA

 Power Supply     480 V, 60 Hz, 3-Phase

Panel Voltage     110 V, 60 Hz, 1-Phase

Max. Admissible Voltage Fluctuation     ±5 %

g.   Furnace Performance (empty furnace)

Pump Down Time to 10-2 torr (range)     < 30 min

Heating Ramp Rate (RT to 1,700 °F)     < 20ºF/min

Cooling Rate (1,700 °F to 140 °F)     < 20ºF/min

Backfill Rate     10 psi/min

Vent Rate     10 psi/min

Max. Vessel Temperature     140ºF

h.   Hot Zone

Heating Zones (Front, Bottom, Left, Right, Back)    5

Insulation     Graphite Board with Foil and CFC Cover

Heating Elements     Flat Graphite Bars

Quench Direction     Top-to-Bottom or Bottom-to-Top
