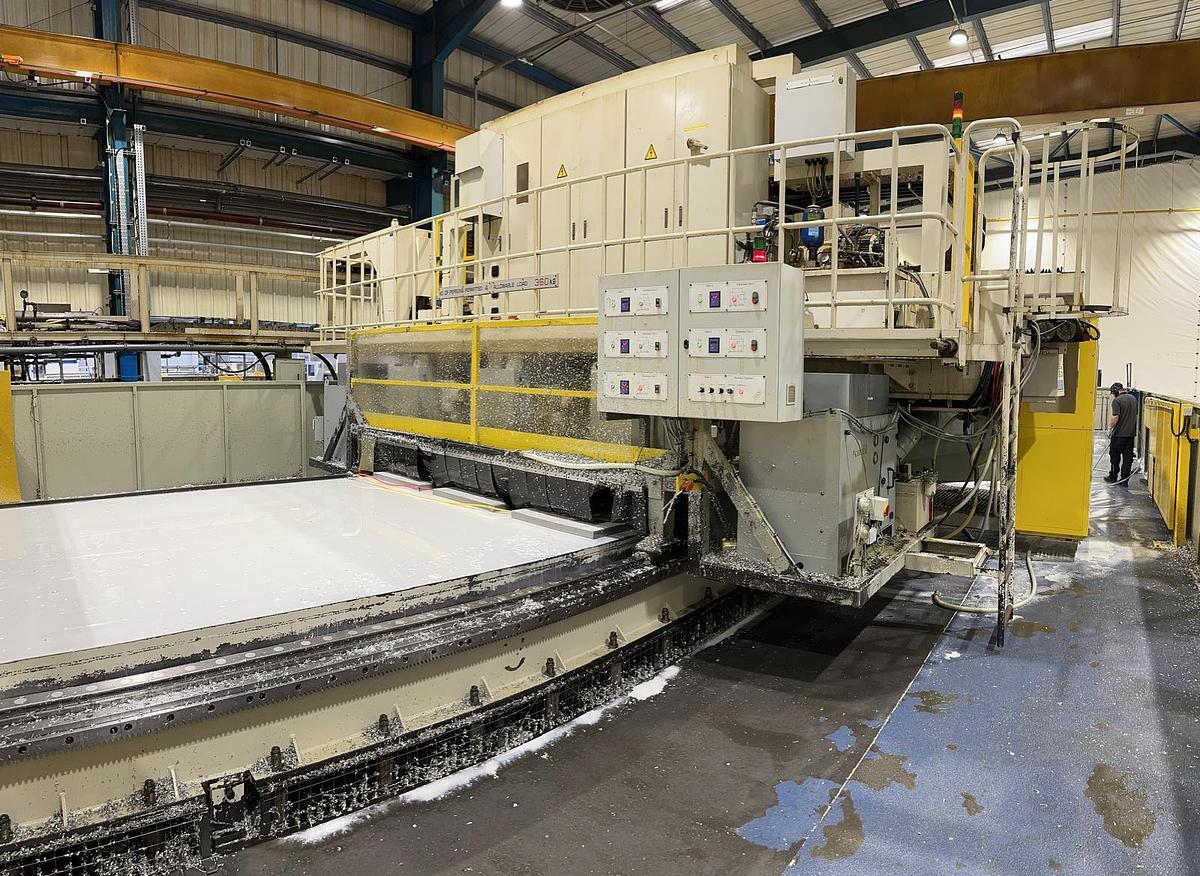

SNK PM 6B 5 Axis Bed Mil

GENERAL SPECIFICATIONS – SNK PM 6B 5 Axis Bed Miller

Year – 1999

Working mounting surface:

Width 3,050 mm

Length 18,300 mm

Total bed length 21.000 mm

Distance from table top to spindle end 127mm to 838.2mm

Working mounting surface bolt hole pattern (grid pattern):

Spacing: 254 mm

Size: M16

Travels (CNC control) Gantry longitudinal

Spindlehead transverse

(X) 18,300 mm

(Y) 3,150 mm

(Z) 711.2 mm

(A & B) swivel axis – 0 – 240 dpm

Spindlehead Specification

Spindle Horse Power – 40HP

Spindle RPM – 150 – 10,000

Spindle Taper – BT50

Distance Between Spindle Centres – 1,016mm

Control Systems

Fanuc – 15-MB

 Brand New Filtration system in 2017 by camfil.
