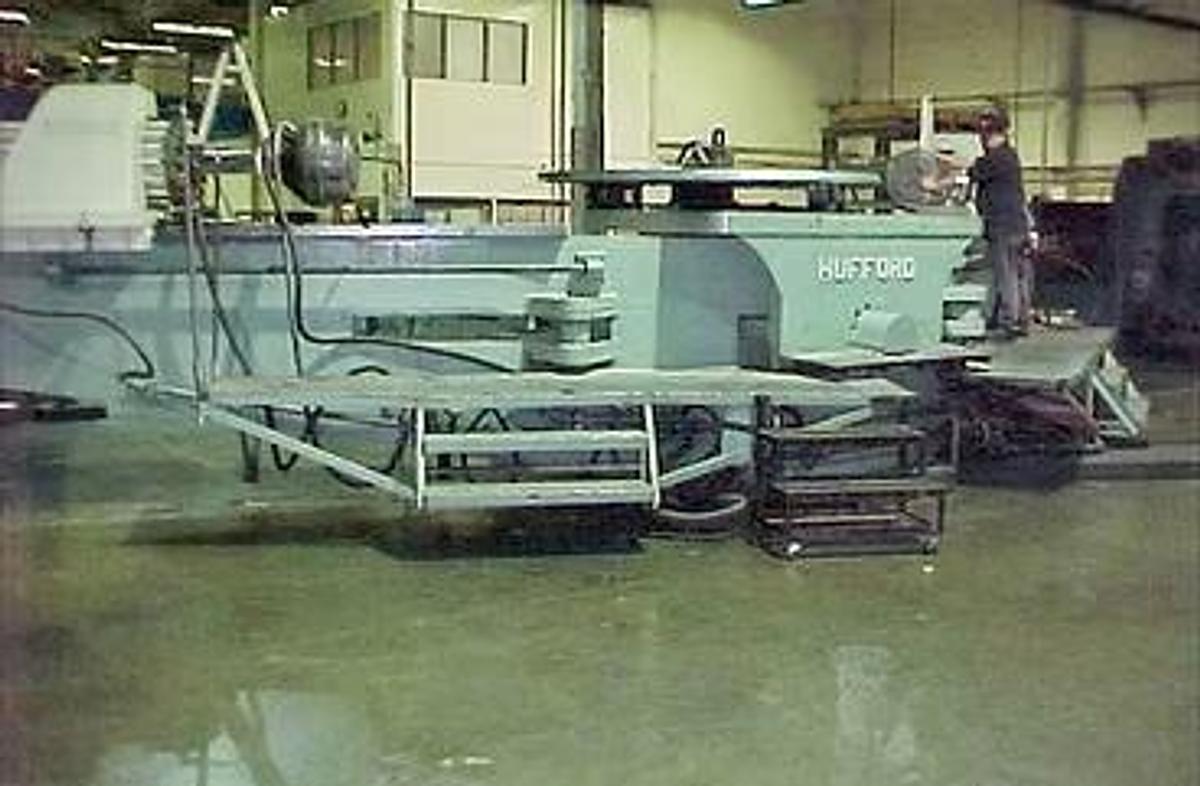

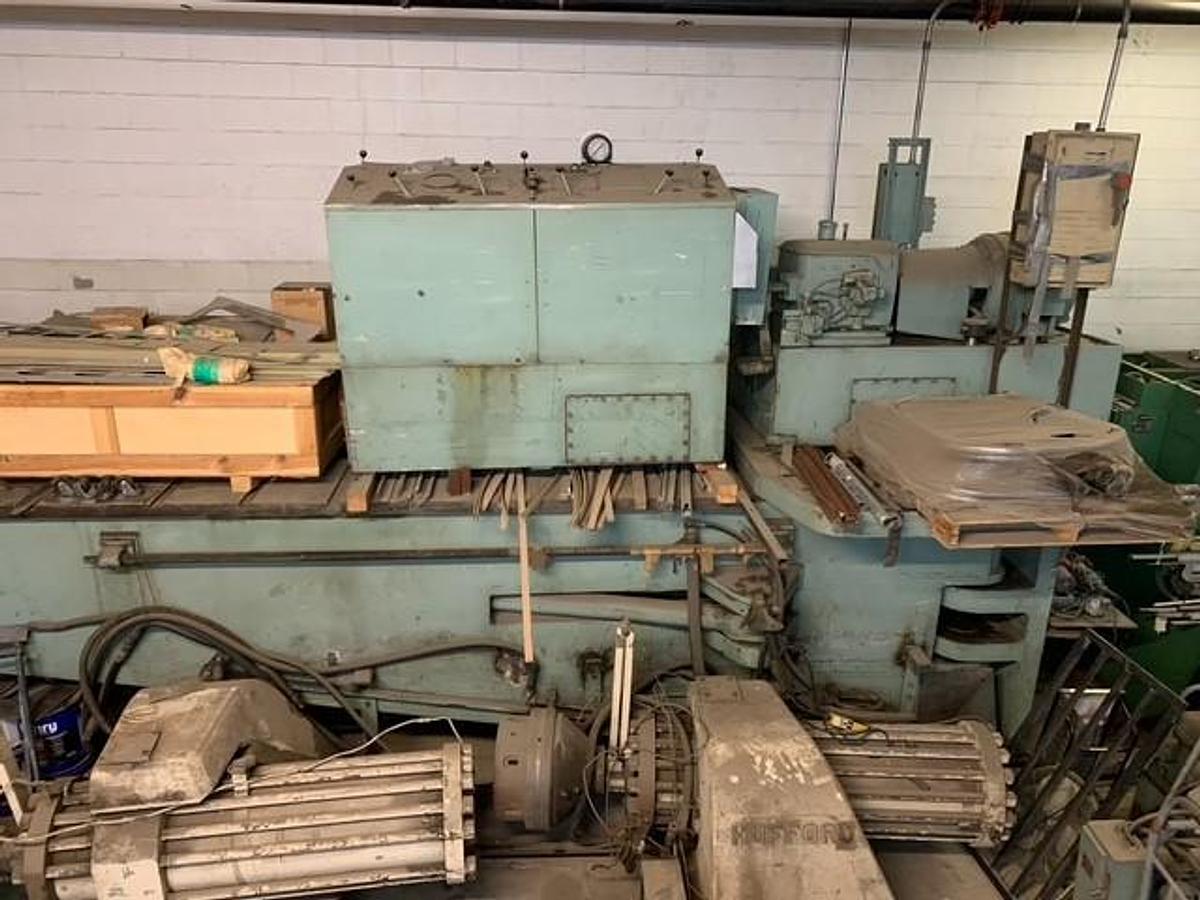

Hufford Model A-15 Stretch Forming Machine

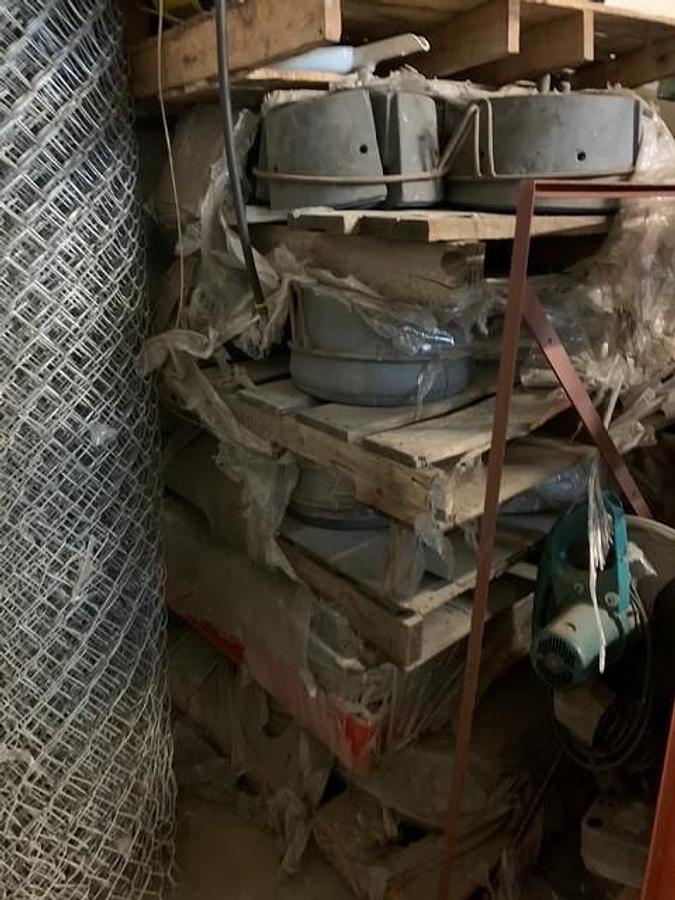

Hufford A-15 hydraulic extrusion stretch forming machine, 105 tons, 8" diameter gripper heads

Tension cylinders:

Bore - 12.5 in, rod - 5", stroke - 45"

Max. pull at 2000 psi - 206,170 lbs

Arm actuating cyls:

Bore: 10.5", rod - 5.5", stroke - 76"

Max pull at 3000 psi - 182,000 lbs, max thrust at 3000 psi - 256,000 lbs

Overall width: 27'

Overall depth - 24' - 5"

Height - 8' - 11"

Wgt: 84,000 lbs

Table: 96" x 60" deep x 65" high

Max part length - 264"

Max die length - 92"

Min. - 20"
