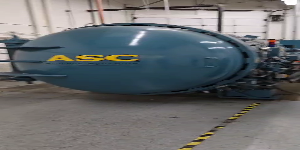

2019 ASC 5' x 10' Econoclave Autoclave
2019 ASC 5' x 10' Econoclave Autoclave
Contact us for price
Location:United States
or
Call 203-746-6409
Description
- Working diameter (excluding floor): 60” (1524 mm)
- Working length (front of floor to rear H-slot panel); 120” (3048 mm)
- Floor to Ceiling (at the vertical position, +/- 12mm) 48-½” (1232 mm)
- Shop floor to Autoclave floor: 28-¼” (718 mm)
- Overall width with the door closed: 116” (2946 mm)
- Overall width with the door open: 104 ½” (2654 mm)
- Overall length with the door closed: 258” (6553 mm)
- Overall length with the door open: 310-¾” (7893 mm)
- Overall height: 89” ( 2261 mm)
- Maximum interior working temperature: 450°F (232°C)
- Maximum heating rate (average air): 10 °F/min (5.5 °C/min)
- Maximum cooling rate (average air): 10 °F/min (5.5 °C/min)
- Thermal load during the test; 1,000 lbs (454 kg) steel)
- Temperature uniformity at steady state: +/- 5 °F (+/- 2.8 °C)
- External shell temperature at a maximum temperature: <140° (60 °C)
- Maximum normal working pressure: 200 psig (13.8 bar)
- Maximum vessel design pressure (MAWP): 215 psig (14.3 bar)
- Maximum pressurization rate (average): 10 psi/min ( .69 bar/min)
- Maximum depressurization rate (average): 10 psi/min ( .69 bar/min)
- Quick-opening, Hydraulic Door
Specifications
| Manufacturer | ASC |
| Model | 5' x 10' Econoclave Autoclave |
| Year | 2019 |
| Condition | Used |
| Stock Number | 21 |
