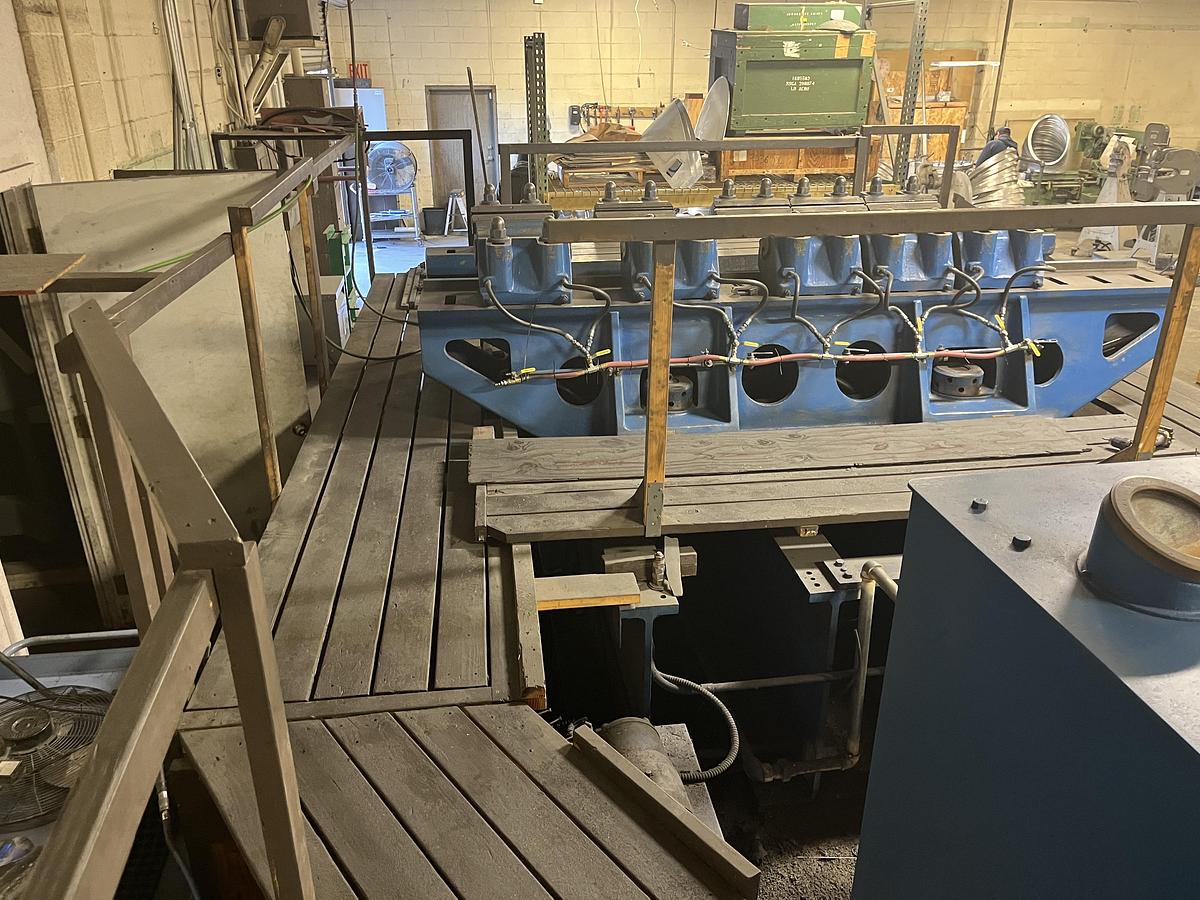

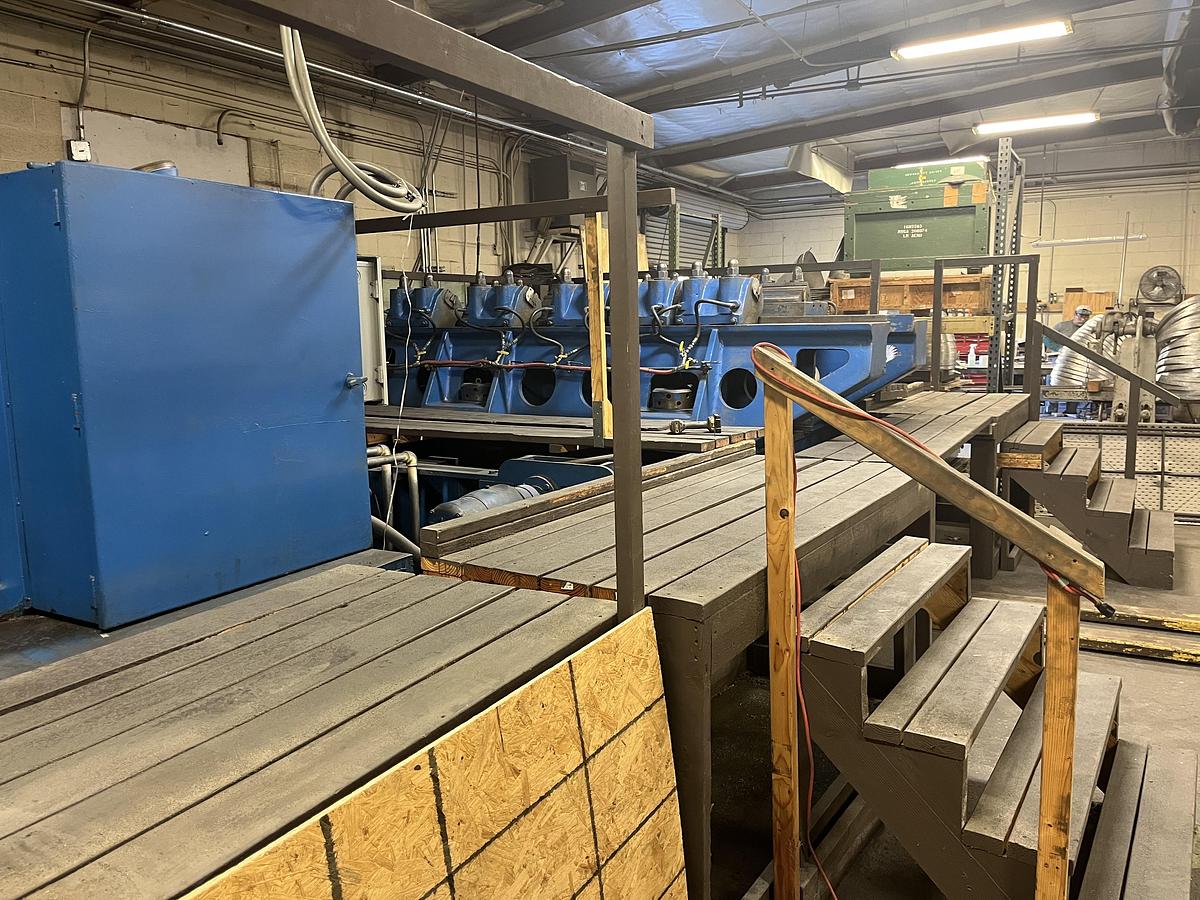

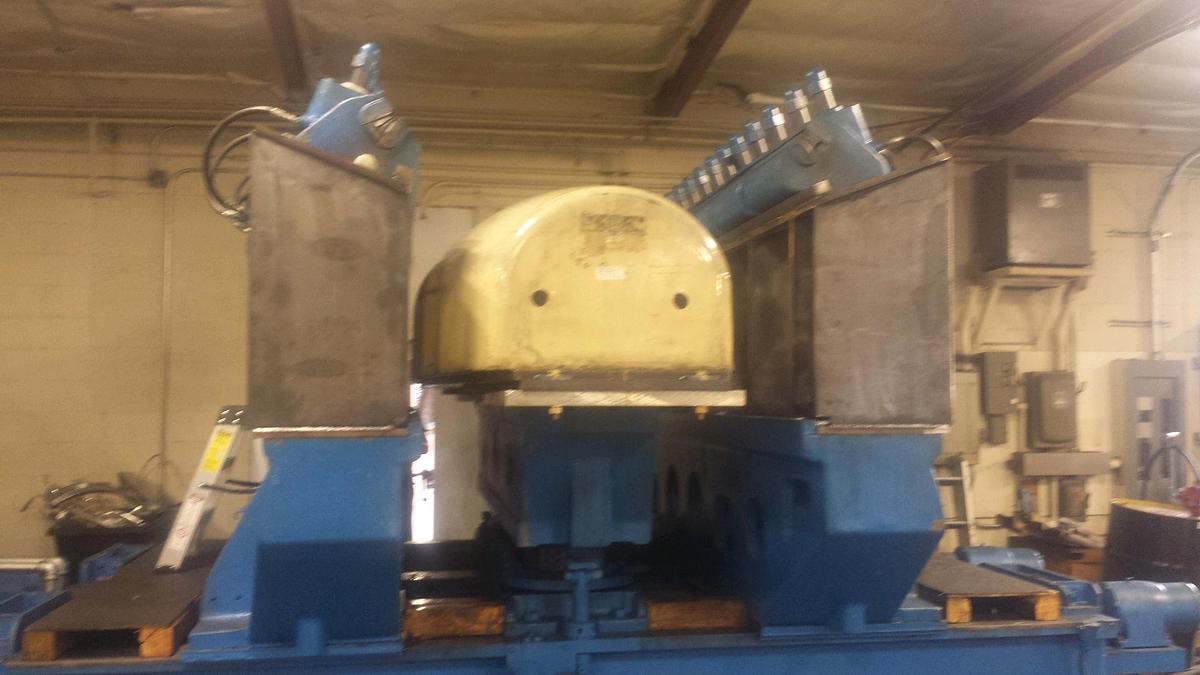

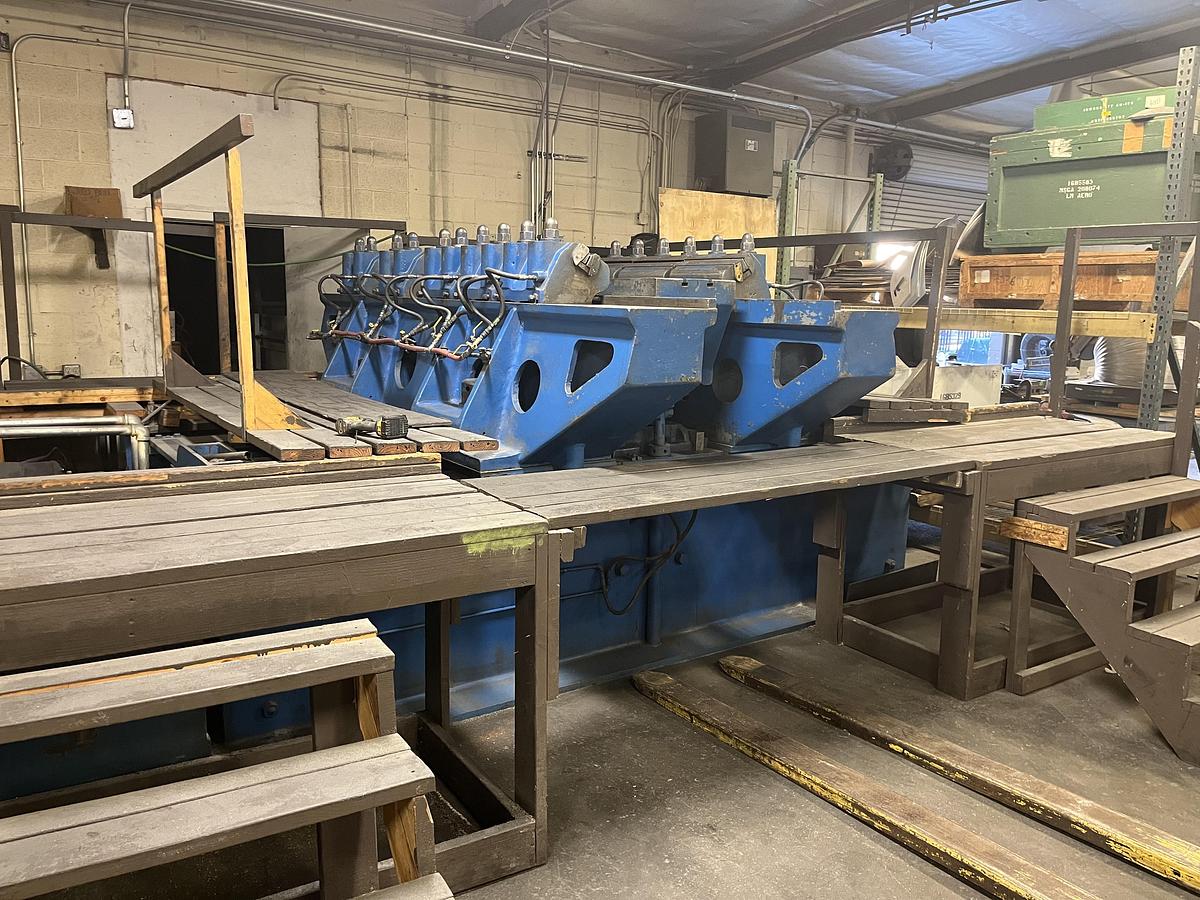

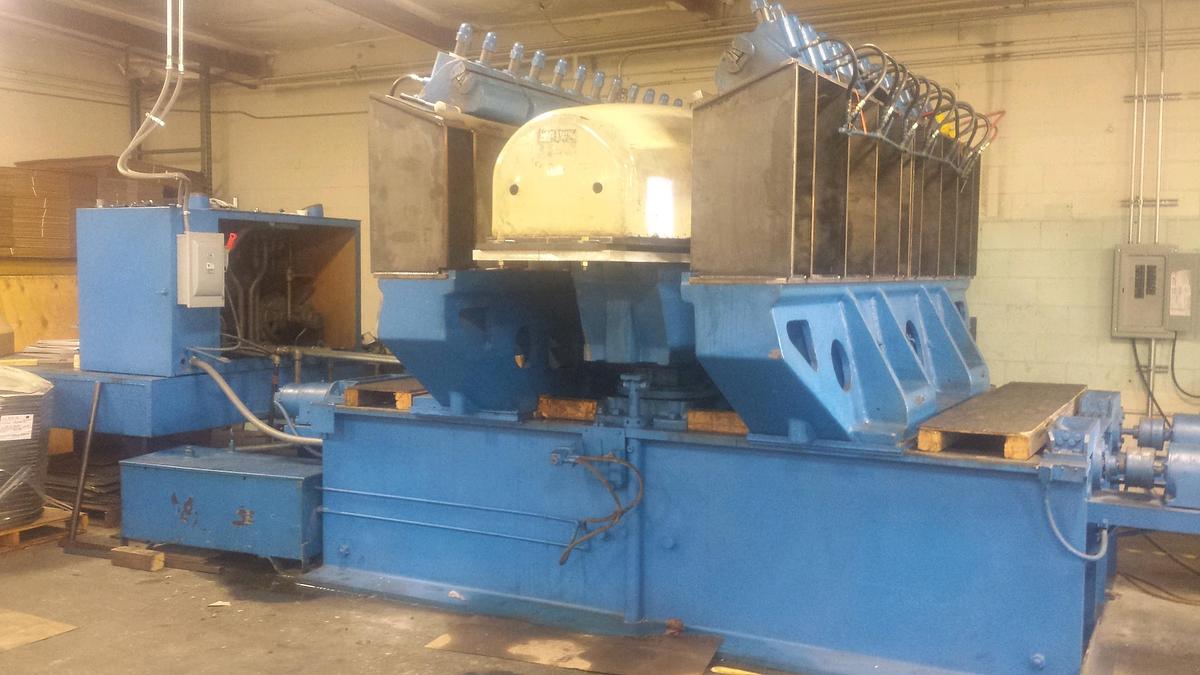

ERCO 300 Ton Hydraulic Stretch Forming Machine

Used ERCO 300 Ton Sheet Stretch Forming Press

Specifications:

Maximum Capacity :                                                             300 Tons

Die Table Length & Width:                                                   98" Length, 17" Width

Die table stroke:                                                                     18"

Length of Hydraulic Gripper Units (Jaws): Each                 16"

Total length of Gripper Jaws, per side:                                80"

Crossbeam length:                                                                  134"

Distance between Clamps, Set Across Beam Ends:              122"

Traverse Screw Diameter, Each Crossbeam (inches);          4" with 3/4 HP drive motor each

Number of Die Table Cylinders:                                           2

Operating Pressure:                                                               up to 2000 PSI

Overall Machine Length and Width:                                    180" x 134" (this can be adjusted slightly)

Approximate Weight:                                                            52,000 lbs

2 - 10 HP - 60 hz Electric Motors

Die Table with Tilting Capability, Angularly setting of Jaws (25 degrees) and Crossbeams (15 degrees) for tapered skins..
